Keeping ships efficiently underway despite fuel quality concerns

The key concerns leading up to the implementation of the IMO 2020 sulphur reduction were the doubts associated with stability and onward compatibility of very low sulphur fuel oils (VLSFO). After an initial influx of off-specification fuels in 2020, VLSFO sedimentation issues stabilised at point-of-sale, with most fuels across all regions now meeting the ISO 8217 fuel standard for marine fuels Total Sediments specification of <0.1 mass %. However, significant issues are still being experienced by ship operators regarding excessive sludge discharge, which not only compromises smooth fuel handling operations on board but also carries an economic penalty in the form of fuel wastage.

As International Maritime Organization (IMO) strengthens its level of ambition on the reduction of greenhouse gas (GHG) emissions from shipping it will be important for shippers to look for every opportunity to reduce fuel waste. Currently it is estimated that 2% of the global fuel oil pool is lost as sludge, which could instead be a useable fuel if it was managed more effectively.

Sludge management will become increasingly important as shippers look to meet IMO ambitions for GHG reductions.

Existing test needs support in today’s fuels

For many years, prior to the implementation of the 0.5% sulphur reduction in 2020, the Total Sediments test had served the industry well. However, as VLSFO blends have been introduced, it has become increasingly apparent that it no longer accurately reflects how these fuels will perform on board the vessel. What we have observed is that:

• Fuels having an acceptably low potential total sediment and accelerated total sediment (TSP/TSA) of <0.1 mass % sediment can exhibit on board issues with regard to excessive sludging.
• Fuels having a high TSP/TSA of >0.1 mass % sediment can operate effectively without on board issues.

Clearly, the change in the fuel landscape and the nature of the sludge being released is contributing to this change. However, the sediments method itself does not reflect the actual conditions that a fuel can experience in the supply system on board the vessel. For example, a 1.6 micron filter is employed in the current test method, despite the fact that no such filter mesh size is found on board. Furthermore, although it is acknowledged that the extreme ageing conditions in the total sediments methods (TSP employs thermal stress and TSA uses cetane for chemical stress) should safeguard against real-world concerns, it is apparent that they may not translate so well to VLSFO in comparison to the heavy fuel oil (HFO), for which the method was established.

The spin test

As highlighted in previous Insight articles, Infineum has been evaluating the Alfa Laval spin test as a supporting test to bridge the gap in fuel stability performance between that indicated by the Total Sediments test (ISO 8217 Standard) and real-world fuel performance.

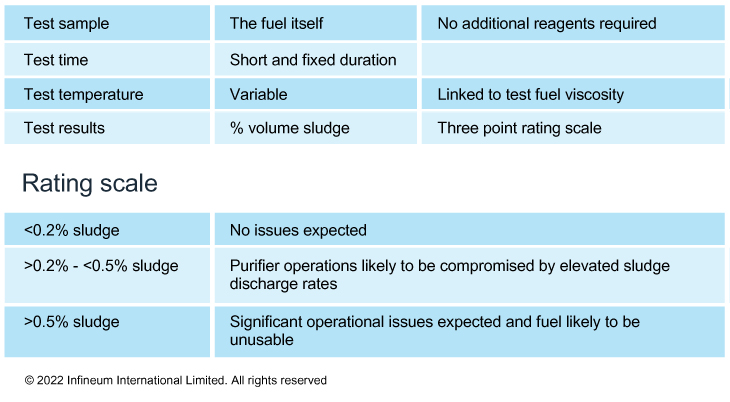

As a brief reminder, the spin test is remarkably simple and carried out with a bench top centrifuge.

The theory behind the spin test is based on the fundamental scientific principles of Stokes' Law and is directly linked to fuel purifier operations on board ship. In the case of the spin test and purifier operation, it relates to agglomerated asphaltene particles separating from a fuel oil under centrifugal force. The correlation is represented in the schematic below.

A key attraction of this test is that Alfa Laval has correlated the performance of the spin test to real-world fuel performance in its purifier equipment used on board ships.

Infineum’s evaluations to date have confirmed that the spin test does correlate to real-world performance.

Blind trials designed to prove spin test

To further stress test this real-world performance correlation we conducted a blind trial on a mixed set of fuels, which were known to have experienced either severe or no issues on board, that were sourced from a major service provider to this market.

• 70% of the fuel set had experienced issues on board.
• All samples collected during bunkering process and were on-spec for ISO 8217 (with the exception of one fuel which was de-bunkered and analysed subsequently).
• Samples run at the recommended spin test temperature based on fuel kinematic viscosity at 50°C.
• A range of separator manufacturers employed on the different vessels to ensure the test has broad vessel coverage

Results

From a subset of the data generated, we can see that all four of the ISO 8217 compliant fuels selected were all on spec for TSP and TSA. However three of those fuels (samples A, B & C) exhibited operational issues on board, which could not be predicted by the other physical properties listed. The spin test results however flagged that issues would arise from the use of these fuels.

On the other hand, sample D, which has similar asphaltene content and Total Sediments results to sample C, did not have operational issues and this expected outcome was picked up by the spin test.

The spin test identified sample D as the only ISO 8217 complaint sample fuel that would not have operational issues

Over the whole sample set, the spin test was able to predict alignment with the on board experience with an overall 85% accuracy.

70% of the ISO compliant fuels tested experienced operational issues

In comparison, the Total Sediments tests (TSP and TSA):

• Failed to identify that 65% of the fuel population would experience issues despite being ISO 8217 compliant
• Correctly identified the ISO 8217 non-compliant fuel for Total Sediments, which experienced on board issues - note this was the fuel which had to be de-bunkered.
• Correctly identified 30% of the fuel population was ISO 8217 compliant and consequently deemed unlikely to cause operational problems.

This study clearly demonstrates that the spin test can work in tandem with the Total Sediments tests to provide additional clarity to ship operators on how fuels will operate on board their vessels.

Reducing sludge to improve efficiency and enhance CII

Where high TSP and TSP results are obtained, sludge stabiliser additives can be used to reduce total sediments to ensure on board operability performance.

Low treat rates of sludge stabiliser additives can be used to reduce total sediments

Even at low treat rates, the sludge stabiliser additive can effectively eliminate fuel wastage that occurs as a result of sludge deposition. This can increase the amount of useable fuel by nearly 2%, which translates directly to reduced fuel consumption and cost savings. These efficiency gains are increasingly important as IMO measures to reduce the GHG emissions from ships include a Carbon Intensity Indicator (CII), which enters into force on 1 November 2022. After a period of monitoring to form a base on which CII will be calculated, ships will receive an A to E energy efficiency rating in 2024. Those rated for three consecutive years as D or one year as E will have an obligation to adopt a plan of corrective actions to improve their energy efficiency performance and bring them back to a C rating.

The improved efficiency provided by effective sludge management can help contribute to an enhanced CII rating.

Additional benefits of routine additive use are enhanced fuel handling operations, the flexibility to recover severe fuels and reduced engine damage and exhaust fouling as a consequence of poor combustion.
